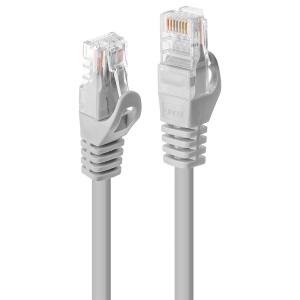

Network Cable - Cat5e - U/utp - Snagless - 40m - Grey
| Introduction | |
|---|---|
| Twisted Pair Patch Cable with RJ45 connectors_x000D_ Cat.5e U/UTP, PVC _x000D_ Integrated snagless connector for latch protection_x000D_ Gold plated pins for better conductivity and elimination of signal loss_x000D_ 10 year warranty_x000D_ _x000D_ Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T._x000D_ _x000D_ Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag._x000D_ _x000D_ The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal._x000D_ _x000D_ Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m._x000D_ _x000D_ |
|
| Features | |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 100 MHz |
| Bend radius (min) | 5.7 cm |
| Harmonized System (HS) code | 84733080 |
| Product colour | Grey |
| Cable length | 40 m |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cabling technology | 10/100/1000Base-T(X) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 4.8 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
| Package type | Polybag |
