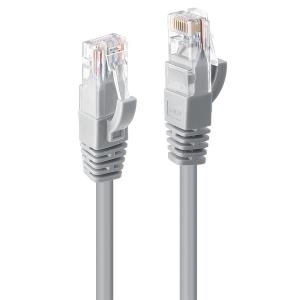

Network Patch Cable - CAT6 - U/utp - Snagless - Gigabit Grey - 10m
| Introduction | |
|---|---|
| Twisted Pair Patch Cable with RJ45 connectors_x000D_ Cat.6 U/UTP, PVC _x000D_ Integrated snagless connector for latch protection_x000D_ Gold plated pins for better conductivity and elimination of signal loss_x000D_ 10 year warranty_x000D_ _x000D_ Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T._x000D_ _x000D_ Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag._x000D_ _x000D_ The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal._x000D_ _x000D_ Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m._x000D_ _x000D_ Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey._x000D_ |
|
| Features | |
| AWG wire size | 24 |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Frequency | 250 MHz |
| Bend radius (min) | 6.9 cm |
| Harmonized System (HS) code | 84733080 |
| Product colour | Grey |
| Cable length | 10 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cabling technology | 10/100/1000Base-T(X) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 5.8 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
| Package type | Polybag |
| Other features | |
| Category | 6 |
