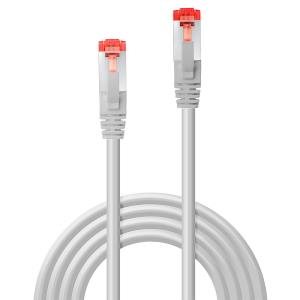

Network Patch Cable - CAT6 - S/ftp - Snagless - Gigabit Grey - 30m
| Introduction | |
|---|---|
| Twisted Pair Patch Cable with RJ45 connectors_x000D_ Cat.6 S/FTP PIMF _x000D_ Integrated snagless connector for latch protection_x000D_ Gold plated pins for better conductivity and elimination of signal loss_x000D_ 10 year warranty_x000D_ _x000D_ Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T._x000D_ _x000D_ Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag._x000D_ _x000D_ The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal._x000D_ _x000D_ Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m._x000D_ _x000D_ Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey._x000D_ _x000D_ |
|
| Features | |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Frequency | 250 MHz |
| Bend radius (min) | 7.4 cm |
| Harmonized System (HS) code | 84733080 |
| Product colour | Grey |
| Cable length | 30 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable class | E |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 27 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 6.2 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
| Package type | Polybag |
| Other features | |
| Category | 6 |
