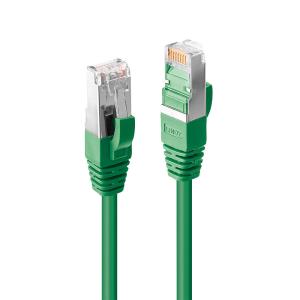

Patch Cable - CAT6a - S/ftp Lszh - 10m - Green
| Introduction | |
|---|---|
| Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions |
|
| Features | |
| Bend radius (min) | 7.2 cm |
| Product colour | Green |
| Cable length | 10 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| Connector housing material | Polycarbonate (PC) |
| Cabling technology | 10GBase-T |
| AWG wire size | 27 |
| Frequency | 500 MHz |
| Certificates | |
| Certification | RoHS, REACH |
| Weight & dimensions | |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Width | 11.6 mm |
| Depth | 21.5 mm |
| Height | 8.3 mm |
| Outer diameter | 6 mm |
| Technical details | |
| Compliance certificates | REACH, RoHS |
| Sustainability compliance | Yes |
| Sustainability certificates | REACH, RoHS |
| Doesn't contain | Halogen |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Packaging data | |
| Package type | Polybag |
