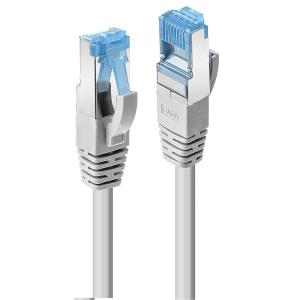

Patch Cable - CAT6a - U/ Utp - 2m - Grey
| Introduction | |
|---|---|
| Cat.6A U/UTP LSZH network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. |
|
| Weight & dimensions | |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Width | 11.6 mm |
| Depth | 22.8 mm |
| Height | 8.3 mm |
| Outer diameter | 5.8 mm |
| Features | |
| Product colour | Grey |
| Cable length | 2 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel/Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| Connector housing material | Polycarbonate (PC) |
| Cabling technology | 10GBase-T |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Bend radius (min) | 6.9 cm |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Package type | Polybag |
| Technical details | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS, UL |
