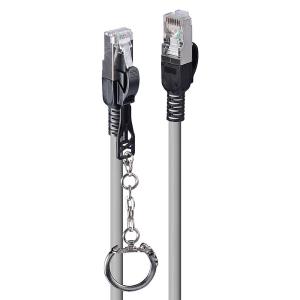

Patch Cable - CAT6a - S/ftp Lszh - 10m - Grey
| Introduction | |
|---|---|
| 10m Cat.6A S/FTP LSZH Network Security Cable, Grey Twisted Pair Patch Cable with RJ45 connectors Cat.6A S/FTP PIMF, LSZH Locking connectors to prevent unauthorized access only accessible with the included key Gold plated pins for better conductivity and elimination of signal loss 10 year warranty Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. The Lindy Cat.6A Security Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m. |
|
| Weight & dimensions | |
| Outer diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.5 mm |
| Features | |
| Product colour | Grey |
| Cable length | 10 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Bend radius (min) | 7.2 cm |
| Nominal attenuation | 49.3dB/100m @ 500MHz |
| Certification | RoHS, REACH, UL |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Packaging data | |
| Package type | Polybag |
