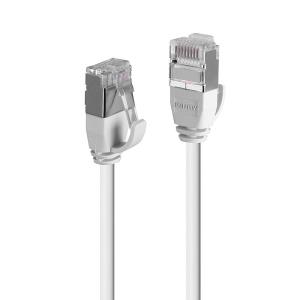

Patch Cable - CAT6a - F/utp Ultra Slim - 5m - Grey
| Introduction | |
|---|---|
| Cat.6A F/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T. Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (F/UTP). Designed as an ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs. |
|
| Weight & dimensions | |
| Connector 1 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Connector 2 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Width | 11 mm |
| Depth | 28 mm |
| Height | 6 mm |
| Outer diameter | 3.6 mm |
| Features | |
| Product colour | Grey |
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| Conductor material | Copper |
| AWG wire size | 30 |
| Frequency | 500 MHz |
| Bend radius (min) | 6 cm |
| Nominal attenuation | 49.3dB/100m @ 500MHz |
| Certification | RoHS, REACH, UL, California |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 40 °C |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | REACH, RoHS, UL ECOLOGO |
| Compliance certificates | REACH, RoHS |
