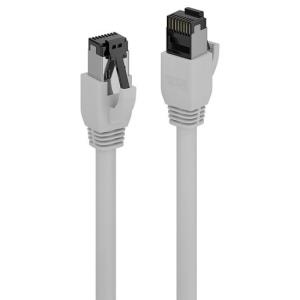

Cable - Cat 8.1 - S/ftp Lszh - 50cm - Grey
| Introduction | |
|---|---|
| Cat.8.1 S/FTP LSZH network cable with support for bandwidth up to 2000MHz and features a snagless design with gold plated contacts for ethernet standards up to 40GBase-T. Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. |
|
| Features | |
| Product colour | Grey |
| Cable length | 0.5 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 2000 MHz |
| Bend radius (min) | 6 cm |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 38.5 mm |
| Height | 17 mm |
| Outer diameter | 7.5 mm |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | REACH, RoHS |
| Compliance certificates | REACH, RoHS |
