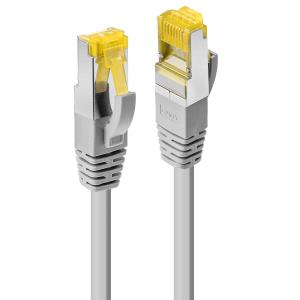

Patch Cable - Cat7 - S/ftp Lsoh - 7.5m - Cool Grey
| Introduction | |
|---|---|
| Twisted Pair Patch Cable with RJ45 connectors_x000D_ Connector: Cat.6A / Cable: Cat.7 S/FTP (600Mhz) _x000D_ Integrated snagless connector for latch protection_x000D_ Gold plated pins for better conductivity and elimination of signal loss_x000D_ 10 year warranty_x000D_ _x000D_ Cat.7 S/FTP LSZH network cable with Cat.6A connectors supports bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. _x000D_ _x000D_ The Cat.7 cable material for operating frequencies up to 600MHz with taotal braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag._x000D_ _x000D_ The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal._x000D_ _x000D_ This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable"._x000D_ _x000D_ Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m._x000D_ _x000D_ Available colours: Black, Blue, Grey, Red, White._x000D_ _x000D_ |
|
| Features | |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Bend radius (min) | 7.8 cm |
| Harmonized System (HS) code | 84733080 |
| Product colour | Grey |
| Cable length | 7.5 m |
| Cable standard | Cat7 |
| Cable shielding | SF/UTP (S-FTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Frequency | 600 MHz |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Weight & dimensions | |
| Outer diameter | 6.5 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Packaging data | |
| Package type | Polybag |
