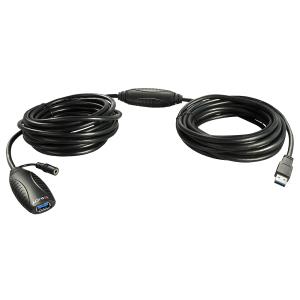

Active Extension Cable - USB 3.0 - Black - 15m
| Introduction | |
|---|---|
| 15 metre USB 3.0 Active Extension Repeater Lead_x000D_ Supports transfer rates up to 5Gbps_x000D_ For even greater distances simply connect 2 cables in series_x000D_ Plug & Play_x000D_ 2 year warranty_x000D_ _x000D_ The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m._x000D_ _x000D_ The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements._x000D_ _x000D_ Information about USB 3.0, 3.1 & 3.2_x000D_ _x000D_ USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_ USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps._x000D_ USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps._x000D_ _x000D_ |
|
| Features | |
| Cable length | 15 m |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28/28/22 |
| Connector material | Nickel |
| Contact material | Copper |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Connector shielding | Y |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Plug and Play | Y |
| Cable type | Round cable |
| Transmission medium | Twisted pair |
| Nominal attenuation | 100 MHz, -1.5 dB 1.25 GHz, -5.0 dB 2.5 GHz, -7.5 dB 7.5 GHz, -25 dB |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Power | |
| Power note | 3.5/1.35mm DC |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Bend radius (min) | 6 cm |
| Connector 1 dimensions (WxDxH) | 16 x 49 x 9 mm |
| Connector 2 dimensions (WxDxH) | 35 x 85 x 15 mm |
| Connector 3 dimensions (WxDxH) | 35 x 100 x 15 mm |
| Weight | 1.33 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 300 mm |
| Package depth | 80 mm |
| Package height | 300 mm |
| Package weight | 1.39 kg |
| Package type | Polybag |
| Packaging content | |
| Manual | Y |
| Other features | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
