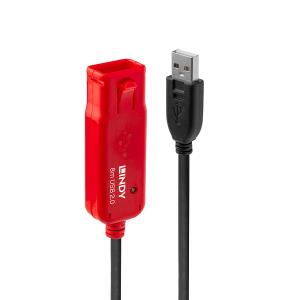

USB 2.0 Active Extension Cable Pro 8m
| Introduction | |
|---|---|
| High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device_x000D_ Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m_x000D_ Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps_x000D_ Easy to use – connects to the device’s existing USB cable (2m maximum)_x000D_ 2 year warranty_x000D_ _x000D_ The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably._x000D_ _x000D_ This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m._x000D_ _x000D_ The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system._x000D_ _x000D_ This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments._x000D_ _x000D_ |
|
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/20 |
| Connector material | Gold/Nickel |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Maximum data transfer rate | 480 Mbit/s |
| Cable type | Round cable |
| Product colour | Black |
| Transmission medium | Twisted pair |
| Nominal attenuation | (0.064 MHz, -0.08 dB) (0.256MHz, -0.11 dB) (0.512MHz, -0.13 dB) (0.772 MHz, -0.15 dB) (1 MHz, -0.2 dB) (4 MHz, -0.39 dB) (8 MHz, -0.57 dB) (12 MHz, -0.76 dB) (24 MHz, -0.95 dB) (48 MHz, -1.35dB) (96 MHz, -1.9 dB) (200 MHz, -3.2 dB) (400 MHz, -5.8 dB) |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Weight & dimensions | |
| Cable length | 8 m |
| Cable diameter | 5 mm |
| Weight | 280 g |
| Bend radius (min) | 2.6 cm |
| Connector 1 dimensions (WxDxH) | 15 x 43 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 64 x 13 mm |
| Cable length | 8 m |
| Weight | 280 g |
| Packaging data | |
| Package type | Box |
| Package width | 238 mm |
| Package depth | 66 mm |
| Package height | 202 mm |
| Package weight | 440 g |
| Quantity per pack | 1 pc(s) |
| Package width | 238 mm |
| Package depth | 66 mm |
| Package height | 202 mm |
| Package weight | 440 g |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
| Harmonized System (HS) code | 85044095 |
| Design | |
| Product colour | Black |
| Other features | |
| Cable type | Round cable |
