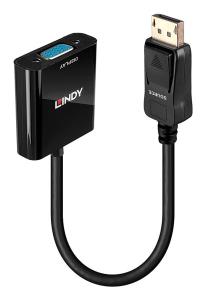

DisplayPort Male To Vga Female Fhd Active Converter
| Introduction | |
|---|---|
| Converts a DisplayPort signal into VGA_x000D_ Supports resolutions up to 1920x1080@60Hz_x000D_ Can be used to add a secondary monitor for extended or mirrored desktop_x000D_ Compact dimensions for easy installation and use_x000D_ 2 year warranty_x000D_ _x000D_ The Lindy DisplayPort to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage._x000D_ _x000D_ This converter can also be used to add a secondary monitor for extended or mirrored desktop modes to increase productivity and screen real estate. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation._x000D_ |
|
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 0.15 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Data transfer rate | 10.8 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Bend radius (min) | 7 cm |
| Product colour | Black |
| Chipset | ANX9833 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Thermoplastic elastomer (TPE) |
| Plug and Play | Y |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Cable diameter | 6.5 mm |
| Connector 1 dimensions (WxDxH) | 38 x 61 x 17 mm |
| Connector 2 dimensions (WxDxH) | 20 x 36 x 11 mm |
| Weight | 45 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package type | Polybag |
| Package weight | 49 g |
