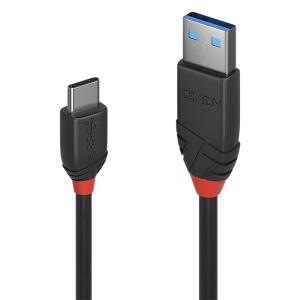

Cable - USB 3.1 Type A To C 3a - Blackline - 50cm
| Introduction | |
|---|---|
| Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications_x000D_ SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)_x000D_ Robust PVC housing, nickel connectors, gold plated contacts_x000D_ Triple shielded cable, corrosion resistant tinned copper conductors_x000D_ 10 year warranty_x000D_ _x000D_ The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_ _x000D_ Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability._x000D_ _x000D_ USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes._x000D_ _x000D_ USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_ _x000D_ Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.15m, 0.5m, 1m and 1.5m._x000D_ _x000D_ We have adapted the naming of our USB 3 cables to follow the updated USB specification._x000D_ _x000D_ USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps_x000D_ _x000D_ USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps_x000D_ _x000D_ USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps_x000D_ _x000D_ USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface._x000D_ |
|
| Features | |
| Maximum data transfer rate | 10 Gbit/s |
| Cable length | 0.5 m |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/30/30 |
| Connector material | Nickel |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Y |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Plug and Play | Y |
| Cable type | Round cable |
| Nominal attenuation | 0.5Mhz €“ 15Ghz 40db |
| Certification | RoHS, REACH, UL |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Cable diameter | 4.5 mm |
| Bend radius (min) | 4.5 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35.1 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11 x 25.5 x 7.3 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Other features | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
