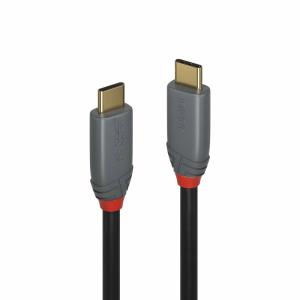

Cable USB 3.2 - USB-c Male - USB-c Male - 2m - Anthraline With Power Delivery
| Introduction | |
|---|---|
| The full-featured Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations. Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability. USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz. USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation. Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m, 1.5m and 2m. We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. |
|
| Features | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 32/30/22 |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Maximum data transfer rate | 10000 Mbit/s |
| Maximum data transfer rate | 20 Gbit/s |
| Product colour | Black |
| Cable colour | Black |
| Plug and Play | Yes |
| USB Power Delivery up to | 100 W |
| Power | |
| Input current (max) | 5 A |
| Output voltage | 20 V |
| Weight & dimensions | |
| Cable length | 2 m |
| Cable diameter | 5.4 mm |
| Width | 13 mm |
| Depth | 41 mm |
| Height | 7.75 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Compliance certificates | REACH, RoHS, UL |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
