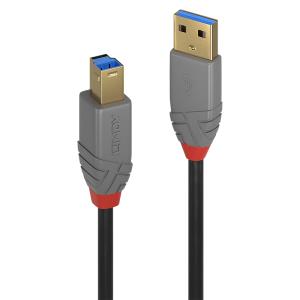

Cable - USB3.0 Type A To Type B - 2m - Anthraline
| Introduction | |
|---|---|
| Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations_x000D_ SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)_x000D_ Robust PVC housing, gold plated connectors and contacts_x000D_ Triple shielded cable, corrosion resistant tinned copper conductors_x000D_ 10 year warranty_x000D_ _x000D_ The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_ _x000D_ Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_ _x000D_ USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes._x000D_ _x000D_ Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m._x000D_ _x000D_ We have adapted the naming of our USB 3 cables to follow the updated USB specification._x000D_ _x000D_ USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps_x000D_ _x000D_ USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps_x000D_ _x000D_ USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps_x000D_ |
|
| Features | |
| Maximum data transfer rate | 5 Gbit/s |
| Cable length | 2 m |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/28/30 |
| Connector material | Gold |
| Contact material | Copper |
| Connector contacts plating | Gold |
| Magnetically shielded | Y |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Y |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black, Grey |
| Cable type | Round cable |
| Nominal attenuation | 0.5-5m: 0.5MHz-7.5GHz |
| Certification | RoHS, REACH, UL |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Cable diameter | 5.5 mm |
| Bend radius (min) | 4.8 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 12.2 x 35 x 13.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Other features | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
