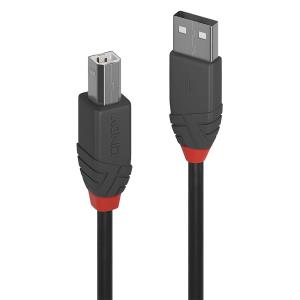

Cable - USB 2.0 Type A To B - Anthraline - Grey - 5m
| Introduction | |
|---|---|
| Professional choice USB 2.0 Type A to B cable for commercial and high performance AV and IT installations_x000D_ Supports data transfer speeds up to 480Mbps_x000D_ Robust PVC housing, nickel connectors and gold plated contacts_x000D_ Double shielded cable, corrosion resistant tinned copper conductors_x000D_ USB 2.0, 480Mbps_x000D_ 10 year warranty_x000D_ _x000D_ From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations._x000D_ _x000D_ Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_ _x000D_ Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes._x000D_ _x000D_ Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m._x000D_ _x000D_ |
|
| Features | |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable length | 5 m |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| Connector material | Nickel |
| Contact material | Copper |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Y |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Cable type | Round cable |
| Nominal attenuation | 5.8db/km |
| Certification | RoHS, REACH, UL |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Cable diameter | 4.4 mm |
| Bend radius (min) | 1.6 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 35 x 10.2 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Other features | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
