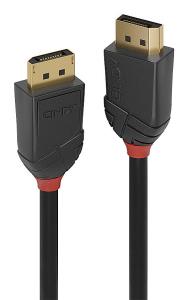

Cable - Dp - Dp - 2m 80gbps - Blackline
| Introduction | |
|---|---|
| From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort 2.1 cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use. UHD resolutions up to 16K 15360x8640@60Hz 4:4:4 10-Bit With DSC (Display Screen Compression). DSC is a visually lossless compression standard that allows higher resolutions and refresh rates by reducing the data bandwidth required for transmission. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD. With support for the full 80Gbps bandwidth of DisplayPort 2.1 (UHBR20), Black Line cables deliver the highest possible data rates over a passive copper connection. This enables uncompressed 8K video at 60Hz with 10-bit 4:4:4 chroma, or 4K at ultra-high refresh rates up to 240Hz ideal for immersive applications such as high-end gaming, virtual production, simulation, and medical imaging. The extreme bandwidth also ensures full compatibility with emerging upto 16K display formats when using DSC. Black Line DisplayPort 2.1 80G cables are premium connections that feature triple shielding with 30AWG bare copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability. |
|
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 2.1 |
| Maximum resolution | 16360 x 8640 pixels |
| Maximum refresh rate | 60 Hz |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 30 |
| Bandwidth | 80000 MB/s |
| Cable type | Round cable |
| Nominal attenuation | 100 MHz - 450 MHz < 5.1 dB 450 MHz - 8100 MHz < 33.28 dB 8100 MHz - 13500 MHz < 38.0 dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Compliance certificates | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Connector 1 dimensions (WxDxH) | 20.7 x 42.6 x 13 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
