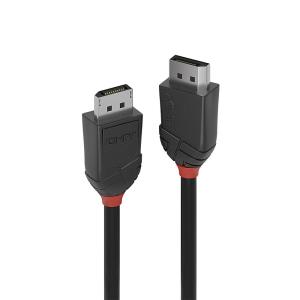

Cable - DisplayPort - Black - 3m
| Introduction | |
|---|---|
| Entry level DisplayPort cable for home and small office applications_x000D_ Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit_x000D_ Robust PVC housing, nickel connectors, 24K gold plated contacts_x000D_ Triple shielded cable, corrosion resistant copper 30AWG conductors_x000D_ DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty_x000D_ _x000D_ From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_ _x000D_ Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability._x000D_ _x000D_ UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible._x000D_ _x000D_ Black Line DisplayPort cables are available in lengths: 0.5m, 1m, 1.5m, 2m and 3m_x000D_ _x000D_ |
|
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum refresh rate | 60 Hz |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable material | Copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 30 |
| Data transfer rate | 21.6 Gbit/s |
| Contact material | Phosphor bronze |
| Connector material | Nickel |
| Plug and Play | Y |
| Bend radius (min) | 4.8 cm |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| Nominal attenuation | 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB |
| Certification | RoHS, REACH, UL |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Packaging data | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
