Cable - DisplayPort - Anthraline - 2m
| Introduction | |
|---|---|

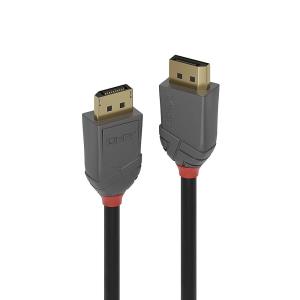

| Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations_x000D_ Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit_x000D_ Robust ABS housing 24K gold plated connectors and contacts_x000D_ Triple shielded cable, corrosion resistant tinned copper 28AWG conductors_x000D_ DisplayPort 1.4, 8K 4K, 3D, 32.4Gbps; 10 year warranty_x000D_ _x000D_ From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations._x000D_ _x000D_ Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability._x000D_ _x000D_ UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices._x000D_ _x000D_ Anthra Line DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m, 5m, 7.5m and 10m._x000D_ _x000D_ |
|
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 4096 x 2160,7680 x 4320 |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable material | Tinned copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 28 |
| Data transfer rate | 32.4 Gbit/s |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Bend radius (min) | 5.84 cm |
| Colour sampling | 4:2:2 |
| Cable type | Round cable |
| Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Certification | RoHS, REACH, UL |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Packaging data | |
| Cable diameter | 7.3 mm |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Package type | Polybag |
| Other features | |
| Depth | 38.9 mm |
| Height | 13.6 mm |
| Width | 21 mm |
