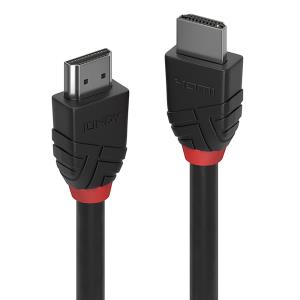

Cable Hdmi - High Speed - 1m - Black
| Introduction | |
|---|---|
| Entry level High Speed HDMI 2.0 cable for home and small office applications_x000D_ Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit_x000D_ Robust PVC housing, nickel connectors, 24K gold plated contacts_x000D_ Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors_x000D_ HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio; 10 year warranty_x000D_ _x000D_ From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use._x000D_ _x000D_ Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability._x000D_ _x000D_ UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD._x000D_ _x000D_ The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m._x000D_ _x000D_ Black Line HDMI cables are available in lengths from 0.5m, 1m, 2m, 3m and 5m_x000D_ _x000D_ |
|
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Features | |
| Cable length | 1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.0 |
| Supported graphics resolutions | 4096 x 2160 |
| Audio Return Channel (ARC) | Y |
| HDMI Ethernet channel | Y |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| AWG wire size | 30 |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Cable material | Copper |
| Cable type | Round cable |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Shield material | Aluminium |
| Bending radius (min) | 6 cm |
| Colour depth | 8 bit |
| Colour sampling | 4:4:4 |
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Certification | RoHS, REACH, UL |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Connector 2 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Package type | Polybag |
