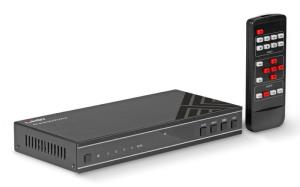

Seamless Switch 4x1 Hdmi 4k60 Multiview
| Introduction | |
|---|---|
| This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output. In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as; Digital Presentations CCTV Surveillance & Control Video Conference & Meeting rooms; The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other. |
|
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Audio (L/R) out | 1 |
| Features | |
| Material | Metal |
| Product colour | Black |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 3840 x 2160 |
| Bandwidth | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP version | 2.2 |
| Power | |
| AC input voltage | 12 V |
| AC adapter input voltage | 2.5 V |
| Weight & dimensions | |
| Width | 219 mm |
| Depth | 111 mm |
| Height | 30 mm |
| Weight | 610 g |
| Packaging data | |
| Package width | 280 mm |
| Package depth | 179 mm |
| Package height | 78 mm |
| Package weight | 1.08 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | HDMI |
| Screws included | Yes |
| Packaging content | 1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher 1 x IR Remote Control 1 x 3pin-3.81mm Phoenix connector (male) 1 x 38KHz IR Wideband Receiver cable (1.5 Meters) 2 x Mounting Ears 4 x Machine Screws (KM3*4) 4 x Rubber Feet 1 x 12v/2.5A Locking Power Adapter 1 x User Manual |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -4 - 140 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
