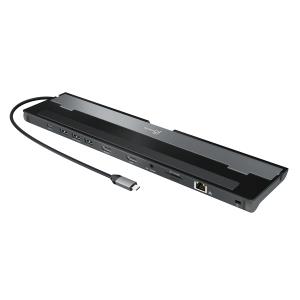

USB-c Dual Hdmi Docking Station
Brand:
J5CREATE
Part Number:
JCD542-N
Stock:
£74.66
(Excl VAT)
£89.59
(incl. VAT)
| Introduction | |
|---|---|
| This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once. This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment. |
|
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Y |
| Ports quantity | 9 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Card reader integrated | Y |
| Card reader slot | 1 |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 30 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Product colour | Black, Grey |
| Housing material | Aluminium |
| USB Power Delivery | Y |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HD type | 4K Ultra HD |
| Number of displays supported | 2 |
| Cable length | 0.45 m |
| Country of origin | Taiwan |
| Compatible products | Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Number of displays supported | 2 |
| Maximum refresh rate | 30 Hz |
| Product colour | Black, Grey |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Housing material | Aluminium |
| Country of origin | Taiwan |
| Power | |
| Power supply type | USB |
| Power consumption (typical) | 4.5 W |
| Output voltage | 20 V |
| Output current | 0.9 A |
| Power supply type | USB |
| Output voltage | 20 V |
| Output current | 0.9 A |
| Power consumption (typical) | 4.5 W |
| System requirements | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan |
| Software | |
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Maximum operating temperature | 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 118 °F |
| Storage temperature (T-T) | -10 - 65 °C |
| Weight & dimensions | |
| Width | 82.5 mm |
| Depth | 350.2 mm |
| Height | 22 mm |
| Weight | 307 g |
| Width | 82.5 mm |
| Depth | 350.2 mm |
| Height | 22 mm |
| Weight | 307 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 88.3 mm |
| Package depth | 358 mm |
| Package height | 28 mm |
| Package weight | 405 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Package width | 88.3 mm |
| Package depth | 358 mm |
| Package height | 28 mm |
| Package weight | 405 g |
| Packaging content | |
| Cables included | USB Type-C |
| Manual | Y |
| Quick start guide | Y |
| Packaging content | 1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG) |
| Cables included | USB Type-C |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging content | 1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG) |
| Technical details | |
| Warranty period | 2 year(s) |
| Warranty period | 2 year(s) |
| Other features | |
| Cable length | 0.45 m |
| Maximum operating temperature | 40 °C |
