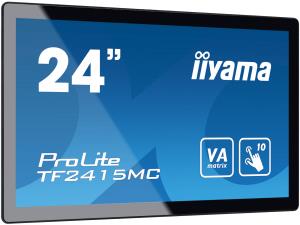

Touch Monitor - ProLite TF2415MC-B2 - 24in - 1920x1080 (FHD) - Black
Brand:
IiYAMA
Part Number:
TF2415MC-B2
Stock:
£454.21
(Excl VAT)
£545.05
(incl. VAT)
| Introduction | |
|---|---|
| The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. FOAM SEAL A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection. OPEN FRAME BRACKETS This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail. BALL-DROP-TEST PROOF The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability. TOUCH THROUGH-GLASS This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. ANTI-FINGERPRINT COATING This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen. |
|
| Display | |
| Panel type | VA |
| Display brightness (typical) | 350 cd/m² |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Surface hardness | 7H |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Display technology | VA |
| Native aspect ratio | 16:9 |
| Aspect ratio | 16:9 |
| Display number of colours | 16.78 million colours |
| Display diagonal (metric) | 60.5 cm |
| Separate H/V sync | Y |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Vertical scan range | 56 - 75 Hz |
| Horizontal scan range | 31.4 - 82 kHz |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Contrast ratio (typical) | 3000:1 |
| Display brightness | 315 cd/m² |
| Response time | 16 ms |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Response time | 16 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Display diagonal (metric) | 60.5 cm |
| Display brightness | 315 cd/m² |
| Separate H/V sync | Yes |
| Design | |
| Front bezel colour | Black |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Power | |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 22 kWh |
| Power consumption (typical) | 24.4 W |
| Power consumption (standby) | 1.06 W |
| Power consumption (off) | 0.32 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 22 kWh |
| Power supply type | DC |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 575 mm |
| Depth (with stand) | 42.5 mm |
| Height (with stand) | 347 mm |
| Weight (with stand) | 5.8 kg |
| Width (without stand) | 575 mm |
| Depth (without stand) | 42.5 mm |
| Height (without stand) | 347 mm |
| Weight (without stand) | 5.8 kg |
| Width (without stand) | 57.5 cm |
| Depth (without stand) | 4.25 cm |
| Height (without stand) | 34.7 cm |
| Weight (without stand) | 5.8 kg |
| Ergonomics | |
| On Screen Display (OSD) | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Panel mounting interface | 100 x 100 mm |
| Placement supported | Horizontal/Vertical |
| Wall mountable | Y |
| VESA mounting | Y |
| Network | |
| Ethernet LAN | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| European Product Registry for Energy Labelling (EPREL) code | 378595 |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Active display area (W x H) | 527.04 x 296.46 mm |
| Weight | 5.8 kg |
| Height | 347 mm |
| Touch method | stylus, finger, glove (latex) |
| Width | 575 mm |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position, touch switch), option (reset, language, source select, display mode, factory) |
| Depth | 42.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CB, CE, cULus, REACH, RoHS, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| AC adapter included | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Placement supported | Horizontal/Vertical |
| Full HD | Yes |
| Glass protection | Yes |
| Full HD | Y |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| OmniTapps Multitouch compatibility | No |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| Built-in camera | N |
| Built-in microphone | N |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| OmniTapps Multitouch compatibility | N |
| HDCP | Y |
| Plug and Play | Y |
| Multimedia | |
| Built-in camera | No |
| Built-in microphone | No |
| Ports & interfaces | |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | 1 |
| HDCP | Yes |
| USB Touch port | Y |
| HDMI | Y |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Y |
| AC adapter included | Y |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Technical details | |
| Glass protection | Y |
