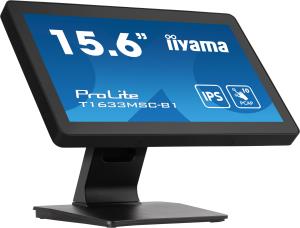

Touch Monitor - ProLite T1633MSC-B1 - 16in - 1920x1080 (FHD) - Black
Brand:
IiYAMA
Part Number:
T1633MSC-B1
Stock:
£283.87
(Excl VAT)
£340.65
(incl. VAT)
| Introduction | |
|---|---|
| The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications. | |
| Display | |
| Number of simultaneous touchpoints | 10 |
| Response time measurement type | GTG (Gray to Gray) |
| Display diagonal (metric) | 39.5 cm |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Display brightness (typical) | 450 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display brightness | 385 cd/m² |
| Performance | |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Palm rejection | Yes |
| Design | |
| Front bezel colour | Black |
| Market positioning | Home |
| Product colour | Black |
| Ports & interfaces | |
| USB hub version | 2.0 |
| USB Touch port | Yes |
| Built-in USB hub | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Number of downstream ports | 2 |
| Ergonomics | |
| Cable management | Yes |
| Tilt adjustment | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Number of OSD languages | 12 |
| Power | |
| AC adapter output voltage | 12 V |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| Power consumption (typical) | 12 W |
| Power consumption (standby) | 8 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | External |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1629639 |
| Weight & dimensions | |
| Weight (without stand) | 5.3 kg |
| Width (with stand) | 389 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 284 mm |
| Weight (with stand) | 3.4 kg |
| Technical details | |
| Native refresh rate | 60 Hz |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 5.3 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP54 |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included | Yes |
| User controls | Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information) |
| Brightness | 385 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| USB ports quantity | 2 |
| Weight | 3.4 kg |
| Height | 284 mm |
| Width | 389 mm |
| Depth | 200 mm |
| Control panel | Power, Menu, Volume +, Volume -, Input |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
