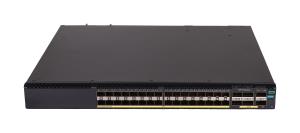

Networking Comware Data Center Switch 32p SFP+ 1G/10G 6p QSFP28 100G 5720
Brand:
Hewlett-Packard Enterprise
Part Number:
S2N57A
Stock:
£7,047.05
(Excl VAT)
£8,456.47
(incl. VAT)
| Introduction | |
|---|---|
| HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28. These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network. Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting. What is new supporting point: VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast. Hardware-based MACsec enable end-to-end encrypted security. Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port—5G, 2.5G, 1G. DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability. Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability. The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking. |
|
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 32 |
| Network | |
| Networking standards | IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1AX, IEEE 802.1AE, IEEE 802.1ak, IEEE 802.1ad |
| 10G support | Yes |
| Data transmission | |
| MAC address table | 280000 entries |
| Switching capacity | 2240 Gbit/s |
| Throughput | 1001 Mpps |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Stackable | Yes |
| Power | |
| Power source | AC |
| Power supply included | No |
| AC input frequency | 50/60 Hz |
| Power supply note | AC: 2x JL592A/JL593A DC: 2x JL688A |
| AC input voltage | 100 - 240 V |
| DC input voltage | 48 - 60 V |
| Power consumption note | Dual AC 90 W |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 8.1 kg |
| Protocols | |
| Routing protocols | RIP |
| Performance | |
| Physical stacking (units) | 9 |
| Internal memory | 4096 MB |
| Operational conditions | |
| Heat dissipation | 785 BTU/h |
| Other features | |
| Latency | < 3 µs |
| Memory and processor | 4 GB flash, 4 GB SDRAM, packet buffer size: 32 M Quad Core ARMv8-Cortex-A72; |
| I/O ports | 32 SFP+,6 QSFP28,1 Slot |
| Performance management | IMC, IMC Orchestrator, CLI, out-of-band management, SNMP Manager, Telnet, FTP |
