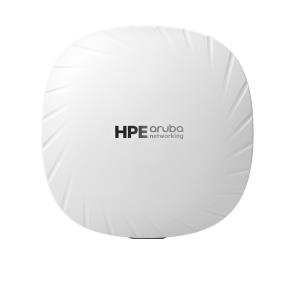

Aruba Networking AP-515 (US) Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus AP
Brand:
Hewlett-Packard Enterprise
Part Number:
Q9H63A
Stock:
£1,031.93
(Excl VAT)
£1,238.32
(incl. VAT)
| Introduction | |
|---|---|
| The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment. The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs. In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation. Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%. |
|
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 5375 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| Spread spectrum method | DSSS, OFDM |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| MACsec support | No |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps |
| Security | |
| Security algorithms | WMM, WPA, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 16 W |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 7.5 dBi |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 200 mm |
| Height | 46 mm |
| Weight | 810 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 220 mm |
| Package height | 72 mm |
| Package weight | 1.01 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 93% |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Certificates | |
| Compliance certificates | Low Voltage Directive (LVD) |
| Certification | None |
| Performance | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| Other features | |
| I/O ports | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
