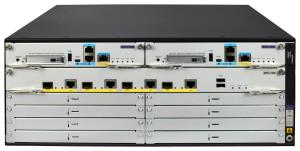

HP MSR4060 Router Chassis (JG403A)
Brand:
Hewlett-Packard Enterprise
Part Number:
JG403A
Stock:
£2,220.94
(Excl VAT)
£2,665.12
(incl. VAT)
| Introduction | |
|---|---|
| The HP MSR4000 Router Series is a family of high-performance, large branch routers that deliver integrated routing, switching, security, VPN, and SIP in a single box. With its integrated infrastructure and modular design, the MSR4000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance. The MSR4000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. Its distributed architecture and high reliability also strengthen the resiliency of large branches. |
|
| Security | |
| MAC address table | 1000000 entries |
| Security algorithms | 3DES,128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1 |
| Firewall | Y |
| ARP attack prevention | Y |
| ICMP attack prevention | Y |
| Access Control List (ACL) | Y |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Flash memory | 512 MB |
| Internal memory | 2000 MB |
| Internal memory type | DDR3 |
| Heat dissipation | 347 BTU/h |
| Ports & interfaces | |
| I/O ports | (8) HMIM slots, (2) MPU (main processing unit) and 1 SPU (service processing unit) slots Maximum, depending on model and configuration |
| Ethernet LAN (RJ-45) ports | 6 |
| Number of MPU slots | 2 |
| Other features | |
| Memory and processor | : MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM |
| Performance management | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Weight (imperial) | 20.6 kg (45.5 lbs) |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 175 mm (17.3 x 18.9 x 6.89") |
| Wireless features | Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| WAN connection | |
| Ethernet WAN | Y |
| DSL WAN | N |
| SIM card slot | N |
| 3G/4G USB modem compatibility | Y |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 36 Mpps |
| VLAN support | Y |
| Multicast support | Y |
| Traffic control | Y |
| Port forwarding | Y |
| Auto MDI/MDI-X | Y |
| Mobile network | |
| Mobile network generation | 3G, 4G |
| 4G standard | LTE |
| Management features | |
| Web-based management | N |
| Quality of Service (QoS) support | Y |
| Protocols | |
| Routing protocols | RIP-1,RIP-2 |
| DHCP client | Y |
| DHCP server | Y |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Product colour | Black, Silver |
| Rack mounting | Y |
| Rack capacity | 4U |
| Power | |
| Power consumption (typical) | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
| Operating temperature (T-T) | 40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 480 mm |
| Height | 175 mm |
| Weight | 20.6 kg |
