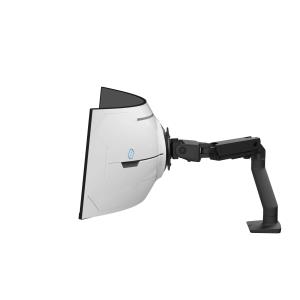

Monitor Mount - HX Desk Monitor Arm with VHD Pivot - 1 monitor - Tilt/Pan/Rotate - up to 57in - Black
Brand:
ERGOTRON
Part Number:
45-693-224
Stock:
£286.08
(Excl VAT)
£343.30
(incl. VAT)
| Introduction | |
|---|---|
| Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57? Odyssey G9 Gaming Monitor. note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate. |
|
| Mounting | |
| Maximum weight capacity | 17 kg |
| Maximum weight capacity (per display) | 17 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 17 kg |
| Maximum screen size | 144.8 cm (57") |
| Mounting | Clamp |
| Suitable for TV | Yes |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Extension arm (max) | 44.7 cm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 6.6 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 292 mm |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 20° |
| Swivelling | Yes |
| Rotating | Yes |
| Angle of rotation | 20° |
| Pan range | 0 - 180° |
| Number of arms | 1 |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Orientation | Landscape |
| Easy to install | Yes |
| Weight & dimensions | |
| Weight | 8.1 kg |
| Packaging data | |
| Package width | 342 mm |
| Package depth | 525 mm |
| Package height | 198 mm |
| Package weight | 10.8 kg |
| Packaging content | |
| Clamp included | Yes |
| VESA mount included | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Packaging content | HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware |
| Other features | |
| Warranty period | 10 year(s) |
| Logistics data | |
| Country of origin | China |
