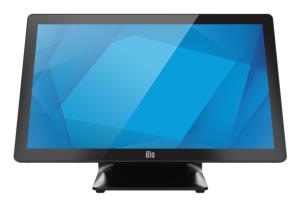

I-series 3 - 21.5in - i5 1245ul - 8GB Ram - 256GB Flash - Pcap - Win10 / Win11
Brand:
Elo Touch Solutions
Part Number:
E428656
Stock:
£2,552.13
(Excl VAT)
£3,062.55
(incl. VAT)
| Introduction | |
|---|---|
| Completely redesigned I-Series 3 with Intel. Brilliant and beautiful, interactive platform. Modular design. Endless versatility. Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more. Universal VESA Mount Conveniently mount the I-Series with the built-in VESA mount. Expand with Edge Connect Seamlessly attach a variety of peripherals to the edge of the touchscreen. Reliable, security and performance. Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need. Expand possibilities with AI processing. Experience unparalleled AI processing power with the I-Series 3, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with i7 processor models. Enhanced connectivity for all your accessories. Support for Linux. For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems. Bridge the gap between Windows and Android. Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices. Get peace of mind with EloCare |
|
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m˛ |
| Panel type | LCD |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1245UL |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 2.5 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 28 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | M.2 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On/off button | Yes |
| Performance | |
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows?11?IoT?Enterprise |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 24 V |
| Weight & dimensions | |
| Width (with stand) | 525.8 mm |
| Depth (with stand) | 204.6 mm |
| Height (with stand) | 368.7 mm |
| Weight (with stand) | 10 kg |
| Width (without stand) | 525.8 mm |
| Depth (without stand) | 39.6 mm |
| Height (without stand) | 321.1 mm |
| Weight (without stand) | 6.1 kg |
| Package width | 645 mm |
| Package depth | 513 mm |
| Package height | 318 mm |
| Package weight | 13.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates | RoHS, cUL, CE, UKCA, RCM, CCC, Norma Oficial Mexicana (NOM), MIC, VCCI, State Radio Regulation of China (SRRC), Federal Communications Commission (FCC) |
