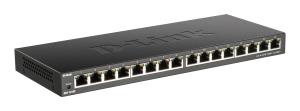

Ethernet Switch Dgs-1016sb 16-port 10/100/1000mbps Unmanaged Gigabit
Brand:
D-LINK
Part Number:
DGS-1016S/B
Stock:
£43.66
(Excl VAT)
£52.39
(incl. VAT)
| Introduction | |
|---|---|
| Slim, Low-Profile Design Allowing the switch to be placed on the desktop or mounted on the wall High-Speed Gigabit Networking Connect up to 16 devices for fast file transfers and smooth media streaming Silent Operation Fanless design means the switch is virtually silent when in use Energy Efficient Integrated energy-saving technology to reduce power usage automatically Connect More, Connect Faster The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed. Silent and built to last Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability. Visual Cable Diagnostics LEDs on each port allow you to quickly see when something is wrong with the connection. Good for your wallet, great for the planet With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port. |
|
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3az, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.512 MB |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Safety | LVD |
| Performance | |
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 564658 h |
| Power | |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 8.89 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 30.32 BTU/h |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 110 mm |
| Height | 25 mm |
| Weight | 770 g |
| Certificates | |
| Certification | CE, FCC, ICES 003, RCM |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
