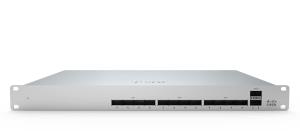

Cloud Managed Ms450-12 - Switch - Managed - 12 X 40 Gigabit Qsfp+ + 2 X 100 Gigabit Qsf
Brand:
CISCO
Part Number:
MS450-12-HW
Stock:
£16,784.52
(Excl VAT)
£20,141.42
(incl. VAT)
| Introduction | |
|---|---|
| HIGH-BANDWIDTH AGGREGATION SWITCHING The Cisco Meraki MS450 brings powerful high-bandwidth switching to the aggregation layer. The 40G fiber aggregation switch with 100G uplinks adopts the benefits of the cloud with simplified management, reduced complexity, and network-wide visibility. EXPANDING CLOUD MANAGEMENT TO THE CAMPUS Meraki aggregation switches are built from the ground up to be easy to manage without compromising the power and flexibility traditionally found in enterprise-class switches. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki’s centralized management gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs. INDUSTRY-LEADING CLOUD MANAGEMENT Cloud management has a number of benefits that make it easier to build campus networks |
|
| Ports & interfaces | |
| QSFP+ module slots quantity | 12 |
| QSFP28 ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 12 |
| Installed QSFP+ modules quantity | 2 |
| Console port | RJ-45 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad |
| Broadcast storm control | Y |
| VLAN support | Y |
| Data transmission | |
| Switching capacity | 400 Gbit/s |
| Forwarding rate | 654.76 Mpps |
| MAC address table | 64000 entries |
| Security | |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Y |
| Multicast features | |
| Multicast support | Y |
| Protocols | |
| Management protocols | DHCP, SNMPD |
| Design | |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Grey |
| Certification | CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS |
| Performance | |
| Mean time between failures (MTBF) | 436776 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 57 W |
| Power consumption (max) | 138 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 484.6 mm |
| Depth | 478.8 mm |
| Height | 43.7 mm |
| Weight | 6.26 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
