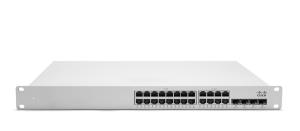

Meraki Cloud Managed Switch Ms350-24x L3 24x Gige Upoe
Brand:
CISCO
Part Number:
MS350-24X-HW
Stock:
£5,445.41
(Excl VAT)
£6,534.49
(incl. VAT)
| Introduction | |
|---|---|
| Switch ports/stacking ports - 8 × mGig port - 16 × 1G port model - 4 × 10G SFP+ uplinks - Stack up to 8 units - 160 Gbps of physical stacking Power/PoE - Unpowered model - MS350-24P includes 370W - Up to 30W per 1G port - Up to 60W per mGig port - Modular power supply/fans Hardware platform - Reliable platform with 24/7 Meraki Support - 1RU rack mountable - Voice and video QoS - Non-blocking switch fabric Cloud management - Email alerts for switch management - Remote troubleshooting tools - Manage ports from a GUI-based dashboard - Zero-touch provisioning - Per-port and per-client usage statistics - Secure, user-scheduled firmware updates Switching capabilities - Layer 3 - Warm spare redundancy (VRRP) - OSPF Routing - MAC forwarding entries, up to 512K - DHCP Server, DHCP Relay - 802.1X Authentication - DHCP Snooping - STP Enhancements - IPv4 and IPv6 ACLs |
|
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| ARP inspection | Y |
| System event log | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3ad |
| 10G support | Y |
| Port mirroring | Y |
| Full duplex | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 272 Gbit/s |
| Forwarding rate | 202.38 Mpps |
| MAC address table | 512000 entries |
| Jumbo frames support | Y |
| Jumbo frames | 9600 |
| Security | |
| DHCP features | DHCP server,DHCP snooping |
| IGMP snooping | Y |
| Security algorithms | 802.1x RADIUS |
| Authentication | Port-based authentication |
| Persistent MAC Learning (Sticky MAC) | Y |
| Authentication type | RADIUS |
| Whitelist | Y |
| Multicast features | |
| Multicast support | Y |
| Protocols | |
| Switching protocols | DSCP-to-CoS, RSTP, STP, CDP, LLDP |
| Routing protocols | CDP |
| Design | |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | White |
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
| Performance | |
| Firmware upgradeable | Y |
| Mean time between failures (MTBF) | 321515 h |
| Power | |
| Power supply included | Y |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 215 W |
| Power consumption (max) | 867 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 484.6 mm |
| Depth | 594.7 mm |
| Height | 44.4 mm |
| Weight | 6.6 kg |
No options for this product
