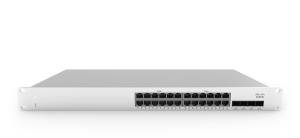

Apl-ms210-24p 1g L2 Cld-mngd 24x Gige 370w Poe Swi
Brand:
CISCO
Part Number:
MS210-24P-HW
Stock:
£2,870.55
(Excl VAT)
£3,444.66
(incl. VAT)
| Introduction | |
|---|---|
| Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch. Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. INDUSTRY LEADING CLOUD MANAGEMENT Cloud management has a number of benefits that make it easier to build networks large and small: - True zero-touch device provisioning. - Virtual stacking: manage up to thousands of ports from a single pane of glass. - Application layer visibility with automatic operating system, client, and hostname fingerprinting. - Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues. - Alerts upon power loss, downtime, or configuration changes. - Role-based administration and automatic, scheduled firmware upgrades over the web. - Regular feature updates and enhancements delivered on demand from the Meraki cloud. |
|
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ad |
| 10G support | N |
| Port mirroring | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 41.67 Mpps |
| MAC address table | 16000 entries |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9578 |
| Security | |
| DHCP features | DHCP snooping,DHCP relay,DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | SNMP |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication |
| Password protection | Y |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Y |
| Protocols | |
| Switching protocols | LLDP, CDP, RSTP, STP |
| Design | |
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Aluminium |
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
| Performance | |
| Physical stacking (units) | 8 |
| Firmware upgradeable | Y |
| Mean time between failures (MTBF) | 391648 h |
| Power | |
| Redundant power supply (RPS) support | Y |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 448 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 484.6 mm |
| Depth | 250 mm |
| Height | 43.8 mm |
| Weight | 3.71 kg |
| Packaging data | |
| Screws included | Y |
No options for this product
