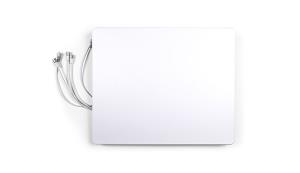

Meraki Ind Dual-band Narrow Patch Ant 5p
Brand:
CISCO
Part Number:
MA-ANT-3-F5
Stock:
£1,019.93
(Excl VAT)
£1,223.92
(incl. VAT)
| Introduction | |
|---|---|
| The Narrow Patch antenna is ideal for high ceiling (25 ft+) aesthetic consensus installations in high density applications and where APs are covering high density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers. This antenna supports Meraki's smart antenna capabilities. The price shown is for a 5-connector model; the Narrow Patch antenna can be purchased with 5 or 6 connectors. | |
| Performance | |
| Frequency band | 2.4/5 GHz |
| Antenna gain (2.4 GHz) | 11.2 dBi |
| Antenna gain (5 GHz) | 10.8 dBi |
| Horizontal beam width (2.4 GHz) | 30° |
| Vertical beam width (2.4 GHz) | 30° |
| Horizontal beam width (5 GHz) | 30° |
| Vertical beam width (5 GHz) | 30° |
| Antenna gain level (max) | 11.2 dBi |
| Features | |
| Antenna connector type | RP-TNC |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 660 mm |
| Depth | 530 mm |
| Height | 130 mm |
No options for this product
