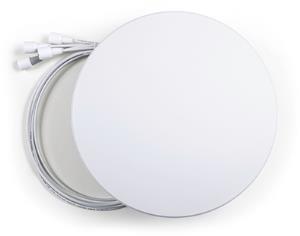

Meraki Ind Dual-band Downtilt Omni Ant
Brand:
CISCO
Part Number:
MA-ANT-3-D5
Stock:
£293.01
(Excl VAT)
£351.61
(incl. VAT)
| Introduction | |
|---|---|
| The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki's smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors. | |
| Performance | |
| Frequency band | 2.4/5 GHz |
| Vertical beam width | 60° |
| Vertical beam width (2.4 GHz) | 60° |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (5 GHz) | 60° |
| Horizontal beam width (5 GHz) | 360° |
| Antenna gain level (max) | 3.7 dBi |
| Features | |
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-TNC |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 93% |
| Weight & dimensions | |
| Height | 37 mm |
| Diameter | 22.5 cm |
| Weight | 570 g |
No options for this product
