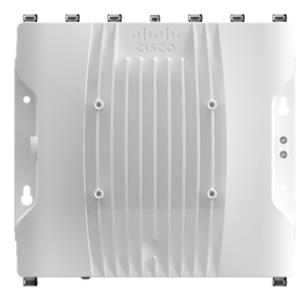

Iw9167 11ax 6e Ap 8 Rf Ports Row Domain
Brand:
CISCO
Part Number:
IW9167EH-ROW-HZ
Stock:
£3,842.89
(Excl VAT)
£4,611.47
(incl. VAT)
| Introduction | |
|---|---|
| The Catalyst IW9167E-HZ has all the capabilities, benefits, and features of the IW9167E Heavy Duty Access Point with the additional capability to deploy in Hazardous Locations (HAZLOC) around the world. Equipped with hardened ports and certified by UL, ATEX, and IECEx, the Catalyst IW9167E Heavy Duty Access Point for Hazardous Locations brings Wi-Fi 6, Wi-Fi 6E, and URWB into regulated explosive environments for the first time. | |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 7800 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Networking standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11h, IEEE 802.11d, IEEE 802.11v, IEEE 802.11u, IEEE 802.11k, IEEE 802.11r, IEEE 802.11i, IEEE 802.1x |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Bluetooth Low Energy (BLE) | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Security | |
| Security algorithms | AES, TKIP, WPA3, WPA2, WPA, EAP-TLS, EAP-TTLS, PEAP |
| Management features | |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP/SFP+ slots quantity | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 24 - 48 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| International Protection (IP) code | IP66, IP67 |
| Reset button | Yes |
| LED indicators | System |
| Antenna | |
| Antenna type | External |
| Number of connectors | 9 |
| Performance | |
| Flash memory | 1024 MB |
| Internal memory | 2048 MB |
| Certificates | |
| Compliance certificates | UL, ATEX, IECEx |
| Weight & dimensions | |
| Width | 292 mm |
| Depth | 267 mm |
| Height | 71 mm |
| Weight | 4.3 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 100% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
