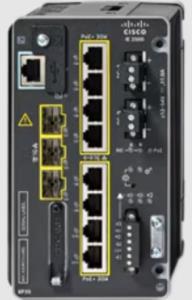

Ie3500 W/ 8 Ge Poe+ And 3 Ge Sfp Modular Ne
Brand:
CISCO
Part Number:
IE-3500-8P3S-E
Stock:
£3,850.02
(Excl VAT)
£4,620.03
(incl. VAT)
| Introduction | |
|---|---|
| The Cisco IE3500 Rugged Series switches deliver high bandwidth, higher power and feature rich switching performance in a rugged and modular form factor. The Cisco IE3500 Rugged Series are designed with features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, large scale networks, robust security, and edge-to-cloud connectivity. |
|
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
| Data transmission | |
| MAC address table | 24000 entries |
| Security | |
| DHCP features | DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| IGMP entries | 1024 |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| DIN rail mounting | Yes |
| Performance | |
| Memory type | DRAM |
| Internal memory | 8000 MB |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 - 54 V |
| Input current | 11 A |
| Power consumption (typical) | 32 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 240 W |
| Total Power over Ethernet (PoE) budget | 360 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 134.4 mm |
| Depth | 152.4 mm |
| Height | 88.4 mm |
| Weight | 1.77 kg |
