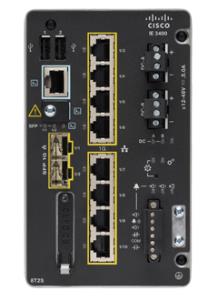

Catalyst Ie3400 With8 Ge Copper And 2 Ge Sfp Modul
Brand:
CISCO
Part Number:
IE-3400-8T2S-A
Stock:
£7,386.56
(Excl VAT)
£8,863.88
(incl. VAT)
| Introduction | |
|---|---|
| Advanced features support for digital transformation Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking. Modular, versatile switch design The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments. Compact form factor for rugged switch use cases Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments. Fast speed, all Gigabit Ethernet Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs. Open extensible platform with IOS XE Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker. Extend intent-based networking to the IoT edge With Cisco's highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments. |
|
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | 802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| USB 2.0 ports quantity | 3 |
| Compatible memory cards | SD |
| Network | |
| Networking standards | IEEE 1588,IEEE 802.11ac,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Number of VLANs | 256 |
| Data transmission | |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Y |
| Access Control List (ACL) IPv4 entries | 2000 |
| Access Control List (ACL) IPv6 entries | 512 |
| IGMP snooping | Y |
| IGMP entries | 1000 |
| Security algorithms | 802.1x RADIUS,SNMPv3,SSH |
| MAC address filtering | Y |
| BPDU filtering/protection | Y |
| Authentication | Guest VLAN |
| Multicast features | |
| Multicast support | Y |
| Design | |
| Rack mounting | Y |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Y |
| Performance | |
| Internal memory | 4000 MB |
| Flash memory | 1500 MB |
| Mean time between failures (MTBF) | 549808 h |
| Power | |
| DC input voltage | 9.6 - 60 V |
| Input current | 6.3 A |
| Power consumption (typical) | 36 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width | 152.4 mm |
| Depth | 15.6 mm |
| Height | 91.4 mm |
