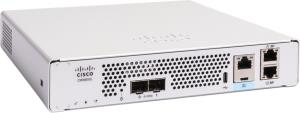

Wireless Controller Cw9800l
Brand:
CISCO
Part Number:
CW9800L
Stock:
£9,892.81
(Excl VAT)
£11,871.38
(incl. VAT)
| Introduction | |
|---|---|
| The Cisco CW9800L Wireless Controller brings advanced performance, security, and simplicity to small and medium-sized wireless networks. It supports up to 500 APs and 10,000 clients delivering robust, future-ready Wi-Fi for handling the latest devices, cloud-based applications, and IoT demands with ease. With enterprise-grade features in a compact form factor, it is ideal for growing businesses, educational campuses, or remote branches. Powered by Cisco IOSŪ XE, the Cisco CW9800L enables seamless integration with Cisco Catalyst Center for AI-driven analytics, enhanced troubleshooting, and network automation. Security is built in, with support for WPA3, Encrypted Traffic Analytics, and Software-Defined Access, helping to safeguard users and data. Cloud monitoring, accessible via the Meraki dashboard, provides unified visibility for easy management and troubleshooting. With application hosting and modular design, it supports next-generation use cases while maximizing investment. The Cisco CW9800L is the ideal choice for organizations seeking intelligent, secure, and future-proofed wireless connectivity delivering enterprise innovation at the right scale for your needs. |
|
| Design | |
| Product colour | Silver |
| Rack capacity | 1U |
| Mounting type | Rack mounting |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| Performance | |
| Control display unit | No |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor frequency | 2000 MHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11be, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.11i, IEEE 802.1x |
| Wi-Fi | Yes |
| Data transfer rate | 10 Gbit/s |
| Security | |
| Security algorithms | AES-CCMP, 3DES, 128-bit RC4, 1024-bit RSA, 2048-bit RSA |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Ports & interfaces | |
| Console port | Micro USB / RJ45 |
| Number of console ports | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| SFP+ ports quantity | 2 |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Power | |
| Power consumption (max) | 90 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Heat dissipation | 307.2 BTU/h |
| Weight & dimensions | |
| Width | 216 mm |
| Depth | 235 mm |
| Height | 40 mm |
| Weight | 2.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
