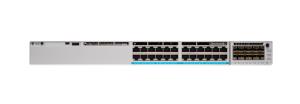

Catalyst 9300 Deep Buffer 24p Mgig Upoe Network Ad
Brand:
CISCO
Part Number:
C9300-24UXB-A
Stock:
£13,708.33
(Excl VAT)
£16,450.00
(incl. VAT)
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Zero Touch Provisioning (ZTP) | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Multiprotocol Label Switching (MPLS) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 476.19 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9198 |
| Packet buffer memory | 32 MB |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| Security algorithms | 128-bit AES, 256-bit AES |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 32000 |
| IPv6 multicast entries | 16000 |
| Protocols | |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP, EIGRP, HSRP, IS-IS, OSPF, RIP |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317 |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 16000 MB |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 214760 h |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 560 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 434 mm |
| Height | 44 mm |
| Weight | 8.25 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
No options for this product
