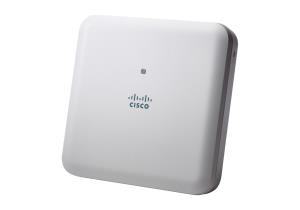

Aironet 1832 Access Point 802.11ac Wave 2 3x3:2ss Int Ant E (air-ap1832i-e-k9)
Brand:
CISCO
Part Number:
AIR-AP1832I-E-K9
Stock:
£534.74
(Excl VAT)
£641.69
(incl. VAT)
| Introduction | |
|---|---|
| Cisco Aironet 1830's series are Ideal for small and medium-sized networks, the series delivers great wireless performance with support for the advanced Wi-Fi standard, and meets the growing requirements of wireless networks by delivering a better user experience. The 1830 series extends support to a generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support. With 802.11ac Wave 2, the 1830 series provides a high data rate, exceeding the data rates offered by high-end 802.11n access points. It also enables a total aggregate dual-radio data rate, providing the necessary foundation for enterprise and service provider networks to stay ahead of the performance and bandwidth expectations and needs of their wireless users. Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users' day-to-day work, but should enable a high-performance experience while allowing users to move freely. The 1830 series delivers amazing performance for highly secure and reliable wireless connections and provides a robust mobility experience. - 802.11a/b/g/n/ac (draft 5.0) - Dual Band (2.4Ghz & 5Ghz) - PoE for simplifed integration - Throughput up to 1 Gbps |
|
| Features | |
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 866.7 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
| Channels quantity | 25 channels |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Receiver sensitivity | 802.11b (CCK) -101 dBm @ 1 Mbps -98 dBm @ 2 Mbps -92 dBm @ 5.5 Mbps -89 dBm @ 11 Mbps 802.11g (non HT20) -96 dBm @ 6 Mbps -95 dBm @ 9 Mbps -94 dBm @ 12 Mbps -92 dBm @ 18 Mbps -88 dBm @ 24 Mbps -85 dBm @ 36 Mbps ? -81 dBm @ 48 Mbps ? -79 dBm @ 54 Mbps 802.11a (non HT20) -96 dBm @ 6 Mbps -95 dBm @ 9 Mbps -94 dBm @ 12 Mbps -92 dBm @ 18 Mbps -88 dBm @ 24 Mbps -85 dBm @ 36 Mbps -80 dBm @ 48 Mbps -79 dBm @ 54 Mbps 2.4 GHz 802.11n (HT20) -96 dBm @ MCS0 -93 dBm @ MCS1 -90 dBm @ MCS2 -87 dBm @ MCS3 -84 dBm @ MCS4 -79 dBm @ MCS5 -78 dBm @ MCS6 -76 dBm @ MCS7 -93 dBm @ MCS8 -90 dBm @ MCS9 -87 dBm @ MCS10 -84 dBm @ MCS11 -81 dBm @ MCS12 -76 dBm @ MCS13 -75 dBm @ MCS14 -73 dBm @ MCS15 5 GHz 802.11n (HT20) -96 dBm @ MCS0 -92 dBm @ MCS1 -90 dBm @ MCS2 -86 dBm @ MCS3 -83 dBm @ MCS4 -79 dBm @ MCS5 -77 dBm @ MCS6 -76 dBm @ MCS7 |
| Security | |
| Security algorithms | 802.1x RADIUS,AES,TKIP,WPA,WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Y |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 15.4 W |
| Design | |
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| LED indicators | Y |
| Internal | N |
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 3 |
| Antenna gain level (max) | 5 dBi |
| Performance | |
| Flash memory | 256 MB |
| Internal memory | 1024 MB |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4572 m |
| Weight & dimensions | |
| Width | 210.8 mm |
| Depth | 210.8 mm |
| Height | 50.8 mm |
| Weight | 930 g |
