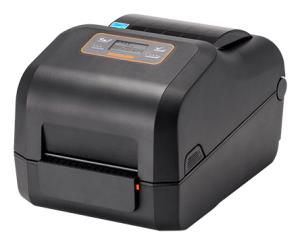

Xd5-40d - Label Printer - Thermal - 118mm 203dpi USB+USB Host Serial Ethernet Bt Only Black
Brand:
BIXOLON
Part Number:
XD5-40TEBK/BEG
Stock:
£306.06
(Excl VAT)
£367.27
(incl. VAT)
| Introduction | |
|---|---|
| Rugged and feature-rich The XD5-40t is a 4-inch (118mm) mid-level Thermal Transfer Desktop Label Printer, featuring a rugged, compact, clamshell design and all-inclusive software features ideal for barcode and labelling applications for the Transport and Logistics, Manufacturing, Healthcare and Retail industries. Available as the XD5-40t (203dpi) and XD5-43t (300dpi) options, the XD5-40t’s standard model (XD5-40t) offers accelerated data processing and print speeds of up to 6 ips (152mm/sec), while boasting enhanced memory space of up to 256MB SDRAM and 256 MB Flash. Providing printer flexibility, the XD5-40t offers a toolless field-installable Peeler, Auto Cutter and external paper supply. With an Optional LCD display, an adjustable paper guide and media roll diameter space of up to 127mm, suitability for both 1/2-inch and 1-inch core ribbons (74 m and 300m ribbon length) and enhanced ribbon handling with the new ribbon left-right balance adjustment. Alongside by Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard. Boasting multiple connectivity options, the XD5-40t comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The barcode and label is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file), alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®. |
|
| Printing | |
| Print technology | Direct thermal / Thermal transfer |
| Maximum resolution | 203 x 203 DPI |
| Number of printable dots | 8 dot |
| Print speed | 152 mm/sec |
| Maximum printing width | 10.8 cm |
| Paper handling | |
| Autocutter | Yes |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Maximum label width | 11.8 cm |
| Maximum roll diameter | 12.7 cm |
| Media thickness | 0.06 - 0.2 mm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| USB port | Yes |
| RS-232 ports | 1 |
| Performance | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Design | |
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display resolution | 200 x 100 pixels |
| Control type | Buttons |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 25 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 284 mm |
| Height | 188 mm |
| Weight | 2.48 kg |
| Packaging content | |
| Cables included | USB |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
