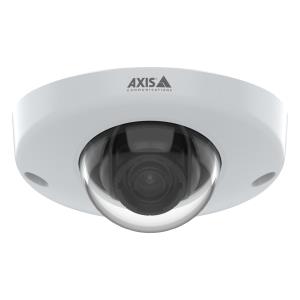

M3905-r Rj45 2.8mm Dome Camera 10 Pcs
Brand:
AXIS
Part Number:
03118-021
Stock:
£3,310.41
(Excl VAT)
£3,972.49
(incl. VAT)
| Introduction | |
|---|---|
| AXIS M3905-R Dome Camera Specifically designed for indoor surveillance onboard buses, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions. Optimized for surveillance onboard buses This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Axis Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS M3905-R can distinguish the color of traffic lights in dark scenes. Furthermore, this product comes in two different product variations with different lens options. And additionally, there are various lens options available as accessories for customized monitoring purposes. For tough onboard conditions AXIS M3905-R complies with transportation-industry regulations for buses including fire-safety. This rugged indoor camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installation. Additionally, when used together with AXIS TP3826-E Housing it can be mounted on the outside of a vehicle to withstand tough weather. Secure and cost-effective This onboard indoor camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that’s perfect for onboard conditions. |
|
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Certification | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A, Korea: KS C 9835, KS C 9832 Class A, USA: FCC Part 15 Subpart B Class A IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, UN ECE R118 IS 13252 IEC/EN 60529 IP66, IEC/EN 60529 IP67, parts of Parts of NEMA 250 Type 4X (ingress of water and gasket test), IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60068–2–14 NIST SP500-267 ETSI EN 303 645 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Aluminium |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0.02 lx |
| Angle of rotation | 350° |
| Lens viewing angle, horizontal | 107° |
| Lens viewing angle, vertical | 56° |
| Tilt angle range | 15 - 90° |
| Pan range | -30 - 30° |
| Camera pixel size | 2.8 µm |
| Camera shutter speed | 1/19000 - 1/5 s |
| Number of Privacy masking areas | 32 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 21.1 m |
| Observe distance | 7.4 m |
| Recognize distance | 4.2 m |
| Maximum aperture number | 1.2 |
| Identify distance | 2.1 m |
| Fixed focal length | 2.8 mm |
| Closest focusing distance | 0.3 m |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 400, 1280 x 800, 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP |
| Alert notification type | |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 2.2 W |
| Power consumption (max) | 3.8 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 50 mm |
| Weight | 241 g |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 10 |
| Manual | Yes |
| Other features | |
| Doesn't contain | CFR, PVC/BFR |
