P1245 Mk Il Modular Standard Camera 10 Pcs
Brand:
AXIS
Part Number:
02857-021
Stock:
£3,866.87
(Excl VAT)
£4,640.25
(incl. VAT)
| Introduction | |
|---|---|

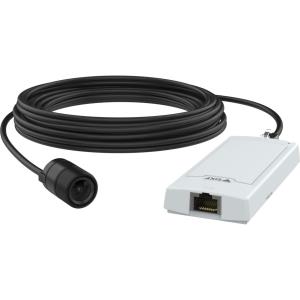

| AXIS P1245 Mk II Modular Standard Camera Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics. Compact and discreet With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation. Highly flexible Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade Great image quality and support for advanced analytics AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy |
|
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Design | |
| Form factor | Covert |
| Mounting type | Ceiling |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Plastic, Steel |
| International Protection (IP) code | IPX3 |
| Camera | |
| Minimum illumination | 0.2 lx |
| Lens viewing angle, horizontal | 111° |
| Lens viewing angle, vertical | 61° |
| Camera shutter speed | 1/6500 - 1/5 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Closest focusing distance | 0.2 m |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Bluetooth | No |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Vehicle detection |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Management features | |
| Behavior analysis | Line crossing detection, Scene change detection |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 3.4 W |
| Power consumption (max) | 4.1 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 75 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Doesn't contain | PVC |
| Compliance certificates | RoHS |
