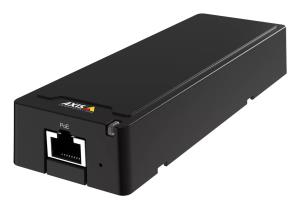

Fa51 Main Unit
Brand:
AXIS
Part Number:
02196-001
Stock:
£321.61
(Excl VAT)
£385.93
(incl. VAT)
| Introduction | |
|---|---|
| Single-channel main unit with HDMI output Ideal for highly discreet surveillance in stores, banks, or offices, this single-channel main unit can connect to one sensor unit to display live video on a public viewing monitor helping deter would-be thieves and reduce shoplifting. Deterrence and security Featuring an HDMI output, AXIS FA51 allows you to connect external devices such as a PVM (Public Viewing Monitor). It includes AXIS Face Detector offering a proactive way to reduce shoplifting. When connected to a PVM this cost-effective main unit will highlight faces within bounding boxes and let would-be thieves believe they're being monitored. When installed at store entrances it also helps you to optimize the security resources in-store. Furthermore, it offers support for audio and one configurable input/output port so you can connect external devices for instance to activate lights and trigger audio messages. High performance Compatible with all AXIS FA sensor units, AXIS FA51 supports one HDTV 1080p video stream at full frame rate to deliver excellent video quality. Thanks to Forensic WDR it provides clarity when there's both dark and light areas in the scene. The main unit can connect directly to the PVM, offering lower latency and reducing the risk of network issues. Plus, as long as there's power, it will continue to display images even when the network is down. Furthermore, Axis Zipstream significantly reduces bandwidth and storage requirements. And, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Discreet and flexible Like all modular camera systems, AXIS FA51 Main Unit is based on a divided network camera concept. The camera is split into a small and highly discreet sensor unit (made up of a lens and image sensor) and the main unit (including the body of the camera). The units are connected by a cable included with the sensor unit. This allows the sensor unit to be installed pretty much anywhere. Ideal for mounting in monitors and ATMs, this highly discreet unit blends in seamlessly with any environment, and the camera lens may be the only visible part. |
|
| Performance | |
| Channels quantity | 1 channels |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 30 fps |
| Resolution at capture speed | 1920x1080@480fps |
| Built-in processor | Yes |
| Internal memory | 1024 MB |
| PTZ control | Yes |
| Live view | Yes |
| Video formats supported | H.264 |
| Features | |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Status |
| Certification | EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC 15 B / A, ICES-3(A)/NMB-3(A), KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, VCCI A IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 IEC/EN 60529 IP4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 |
| Placement supported | Indoor |
| Brand compatibility | Axis |
| Product colour | Black |
| Housing material | Aluminium |
| Maximum number of cameras supported | 1 |
| LED indicators | Y |
| Certification | EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC 15 B / A, ICES-3(A)/NMB-3(A), KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, VCCI A IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 IEC/EN 60529 IP4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267 |
| Storage | |
| Internal storage capacity | 0.5 GB |
| Storage media type | Flash |
| Network | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | IPv4, IPv6, USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, RTCP, DHCP, SOCKS, SSH, CDP, MQTT, Syslog, Link-Local address (ZeroConf) |
| Management features | |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Number of outputs | 1 outputs |
| Number of inputs | 1 inputs |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | N |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (min) | 5.2 W |
| Power consumption (max) | 6.82 W |
| Output voltage | 12 V |
| Power consumption (typical) | 5.2 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| System requirements | |
| Browser supported | Chrome, Edge, Firefox, Safari |
| Weight & dimensions | |
| Width | 49 mm |
| Depth | 152 mm |
| Height | 24 mm |
| Weight | 195 g |
| Width | 24 mm |
| Depth | 152 mm |
| Height | 49 mm |
| Weight | 195 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Y |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Technical details | |
| Doesn't contain | Brominated Flame Retardant (BFR), CFR, PVC |
| Warranty period | 5 year(s) |
| Doesn't contain | BFR, PVC |
| Image sensor | |
| Resolution | 1920 x 1080 pixels |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
