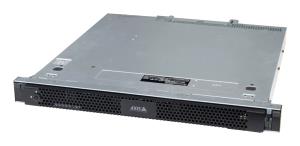

Camera Station S1224 Rack 12TB Recording Server
Brand:
AXIS
Part Number:
03237-001
Stock:
£12,270.65
(Excl VAT)
£14,724.79
(incl. VAT)
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Storage | |
| Number of HDDs supported | 2 |
| HDD interface | SATA |
| Hot-swap drive bays | No |
| Total storage capacity | 12 TB |
| HDD capacity | 12 GB |
| Number of HDDs installed | 1 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Features | |
| Operating system installed | Windows 11 IoT Enterprise LTSC 2024 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Design | |
| Chassis type | Rack |
| Rack capacity | 1U |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 70 W |
| Power consumption (typical) | 55 W |
| Power supply | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Compliance certificates | RCM, ICES, VCCI, Korean Industrial Standards (KS), Federal Communications Commission (FCC), RoHS, REACH |
| Weight & dimensions | |
| Width | 482 mm |
| Depth | 496.8 mm |
| Height | 42.8 mm |
| Weight | 8.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
