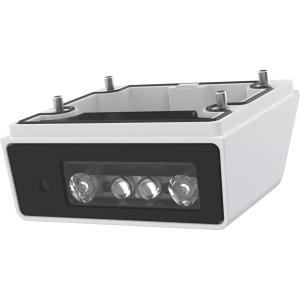

Tq1937-e Ir Illuminator Kit
Brand:
AXIS
Part Number:
03004-001
Stock:
£159.37
(Excl VAT)
£191.25
(incl. VAT)
| Introduction | |
|---|---|
| AXIS TQ1937-E IR Illuminator Kit has a powerful IR and is designed to fit AXIS Q16 Series and AXIS P13 Series. The improved IR has four lenses: two wide-angle lenses for zoomed-out views and two tele lenses for zoomed-in views. This kit is optimized for traffic use cases and ensures accurate license plate reading. It enables cost-efficient surveillance in pitch darkness and includes power-efficient, long-life 850 nm IR with a range of reach of 50 m (164 ft). The IP66/IP67 and IK10-rated IR can easily be mounted on the bottom of the outdoor models in AXIS Q16 Series and AXIS P13 Series. AXIS TQ1937-E IR Illuminator Kit is included in AXIS Q1686-DLE. |
|
| Features | |
| Type | Illuminator |
| Placement supported | Outdoor |
| Brand compatibility | Axis |
| Compatibility | AXIS P1375-E Network Camera AXIS P1377-LE Network Camera AXIS P1378-LE Network Camera AXIS P1385-E Network Camera AXIS P1385-BE Network Camera AXIS P1387-BE Network Camera AXIS P1387-LE Network Camera AXIS P1388-BE Network Camera AXIS P1388-LE Network Camera AXIS Q1656-BE Box Camera AXIS Q1656-BLE Box Camera AXIS Q1656-DLE Box Camera AXIS Q1656-LE Box Camera |
| Product colour | Black, White |
| Housing material | Aluminium, Polycarbonate (PC) |
| IK code | IK10 |
| Power | |
| Input voltage | 5.3 V |
| Power consumption (typical) | 2 W |
| Power consumption (max) | 4.1 W |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 80 mm |
| Height | 40 mm |
| Weight | 294 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Doesn't contain | BFR, CFR, PVC |
| Compliance certificates | Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, RCM, REACH, RoHS, UL |
