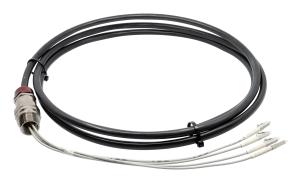

Cable Kit Tx1203 Fiber Optic Multimode 5m
Brand:
AXIS
Part Number:
03405-001
Stock:
£1,471.63
(Excl VAT)
£1,765.95
(incl. VAT)
| Introduction | |
|---|---|
| Designed for use in hazardous areas, this kit is ideal for industrial applications?in dry, wet, or damp?locations. It enables secure connection of an explosion-protected device to AXIS TX1401 Fiber Optic Cable Splice Box.?? Secure connections in hazardous areas? This multimode fiber optic cable kit includes a halogen-free?and?flame-retardant breakout cable (5?m?(16.4 ft) or 10 m (32.8 ft)), that can withstand mechanical stress. It also comes with an?Ex d?barrier gland which allows you to insert the breakout cable directly into flameproof enclosures, providing a safe and reliable solution for hazardous environments. The kit also includes an M25-to-M20 cable gland adapter.?What’s?more, it?complies with?IEC EN 60079-14 requirements for cable installation and wiring in hazardous areas. |
|
| Features | |
| Cable length | 5 m |
| Fibre optic type | OM3 |
| Cable shape | Round |
| Connector 1 | No |
| Connector 2 | 4x LC |
| Connector 1 gender | No |
| Connector 2 gender | Male |
| Cable type | LC |
| Product colour | Black |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 1300,850 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Jacket material | Low smoke zero halogen (LSZH) |
| Sustainability | |
| Doesn't contain | Halogen, PVC, Brominated Flame Retardant (BFR), CFR |
| Certificates | |
| Compliance certificates | IECEx, ATEX, cULus, UL, PESO, CCC, RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
| Cable diameter | 1.04 cm |
| Weight | 550 g |
| Bending radius | 16 cm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Attenuation (max) | 2.8 dB/km |
