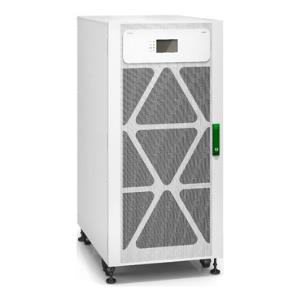

Easy UPS 3M 200kVA 400V 3:3 UPS for External Batteries, Start-Up 5x8
Brand:
APC
Part Number:
E3MUPS200KHS
Stock:
£19,496.17
(Excl VAT)
£23,395.41
(incl. VAT)
| Introduction | |
|---|---|
This Easy UPS 3M E3MUPS200KHS is easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 200 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service. |
|
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 200 kVA |
| Waveform | Sine |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 3 |
| Power factor | 0.5 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Design | |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 850 mm |
| Height | 1300 mm |
| Weight | 304 kg |
| Packaging data | |
| Package width | 975 mm |
| Package depth | 725 mm |
| Package height | 1500 mm |
| Package weight | 338 kg |
No options for this product
