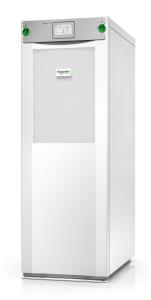

Galaxy VS UPS 50kW 400V for External Batteries, Start-up 5x8
Brand:
APC
Part Number:
GVSUPS50KHS
Stock:
£10,922.67
(Excl VAT)
£13,107.20
(incl. VAT)
| Introduction | |
|---|---|
| www.apc.com/shop/my/en/products/Galaxy-VS-UPS-50kW-400V-for-External-Batteries-Start-up-5x8/P-GVSUPS50KHS Highly efficient, easy-to-deploy 50kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode - reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab. |
|
| Features | |
| Heat dissipation | 4915.1 BTU/h |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 91 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96.1% |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Noise level | 65 dB |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Logistics data | |
| Warranty period | 1 year(s) |
| Ports & interfaces | |
| SmartConnect port | No |
| SmartSlot | Y |
| Packaging content | |
| Management card included | Yes |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| LED indicators | Y |
| International Protection (IP) code | IP21 |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 210 kg |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 235 kg |
| Other features | |
| Input connection type | 4-wire (3PH + G), 5-wire (3PH + N + G) |
| Nominal output voltage | 400 V |
| Nominal input voltage | 400 V |
